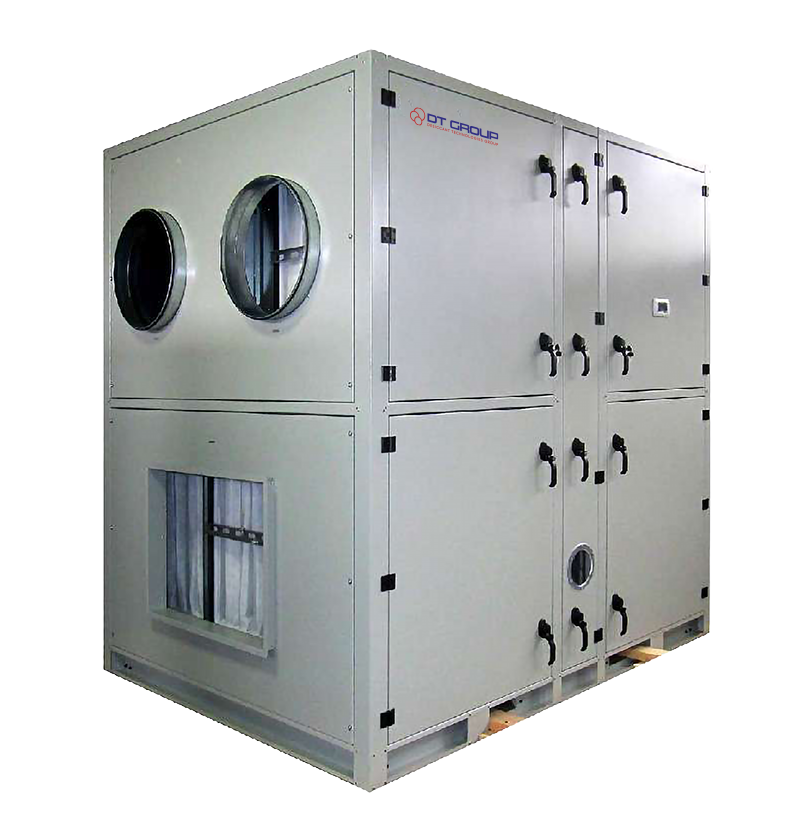

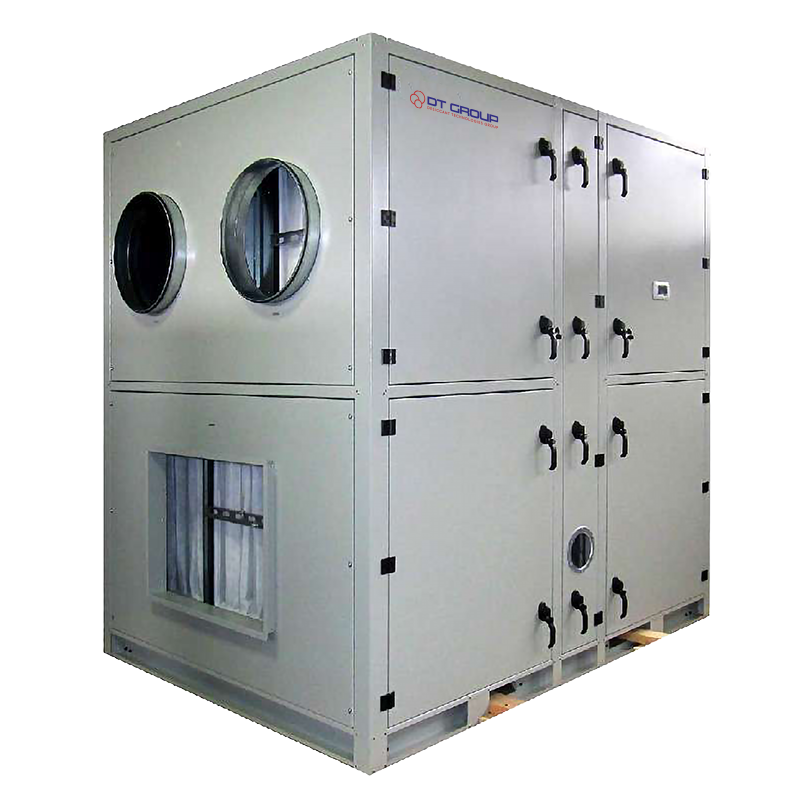

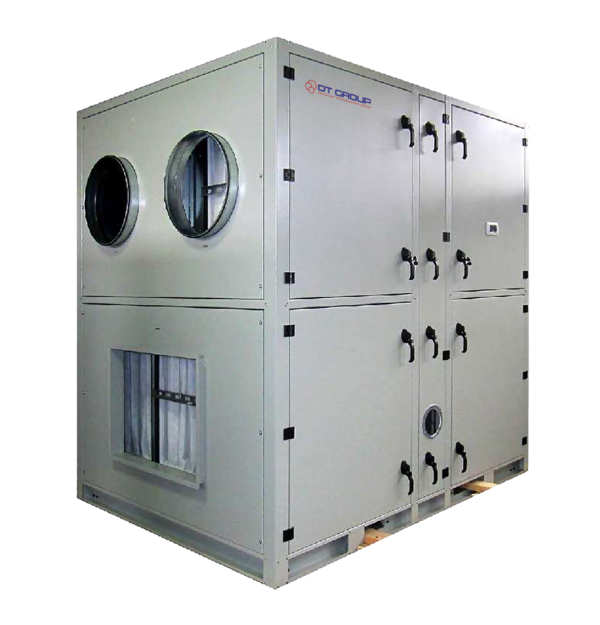

Desiccant Dehumidifiers MDC12000

Desiccant Dehumidifiers: MDC Range

Construction Features

• The casing is completely hermetic and panels are made of 1,0mm AluZinc sheet metal with isolation of
  40mm (rock wool); it has high resistance to atmospheric corrosion. Powder painted panels (outside only);
  rigid frame made of 1,5mm AluZinc sheet metal (powder painted completely) to achieve rigidity;
• Compact design and low weight of the unit;
• High performance at low temperatures and low relative humidity in a room;
• Optional humidistat is available as an accessory;
• Microprocessor based control (optional);
• Tubular electric heating elements for regeneration (standard unit) as well as on request with water, steam or gas heating coil (customized unit);
• Easy access to the internal components of the dehumidifier for the maintenance;
• EC-fans;
• Pocket filters G4 to F9 on request;
• High efficiency of the washable silica gel rotor;
• All components made exclusively by European manufacturers.

Technical data

Process air
Rated airflow – 12000 m³/h
Available static pressure 550 Pa

Reactivation air
Rated airflow 4200 m³/h
Available static pressure 400 Pa

Power supply (electric reactivation)
(3х400V, 50 Hz) 144 kW
Current 210 A

Power supply (steam/water/gas reactivation)
(3х400V, 50 Hz) 12 kW
Current 18 A

Miscellaneous data
Weight 1400 kg
Operating temperature -30/+40˚С
Max noise level without ductworks 73 dBA
Air filter (pocket) G4÷F9
IEC protective class IP55
Insulation 40mm
