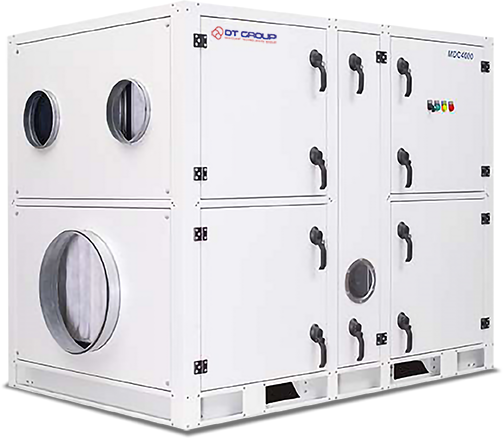

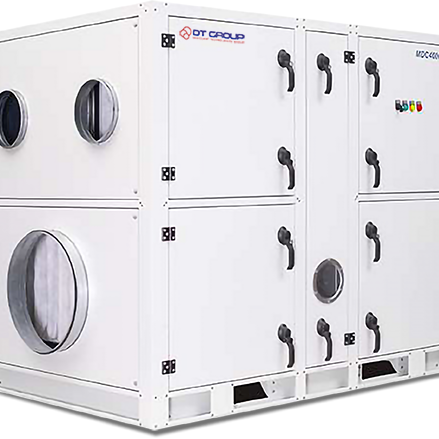

Desiccant Dehumidifiers MDC4000

Engineered for Demanding Industrial Environments: Construction Features

The MDC4000 is built for durability, efficiency, and reliable performance in various industrial settings, featuring:

• Robust and Corrosion-Resistant Casing: The casing is completely hermetic and constructed from 1.0mm AluZinc sheet metal with 20mm rock wool insulation. The panels are powder-painted on the outside. A rigid frame made of 1.5mm AluZinc sheet metal (powder-painted completely) provides added structural integrity and resistance to atmospheric corrosion.
• Compact and Efficient Design: The unit’s compact design facilitates integration into diverse industrial layouts, while its efficient components minimize energy consumption.
• Optimal Performance in Challenging Conditions: The MDC4000 delivers high performance even at low temperatures and low relative humidity.
• Optional Humidistat for Precise Control: An optional humidistat is available as an accessory for applications requiring precise humidity management.
• Advanced Control Options: Microprocessor-based control is available as an optional feature.
• Flexible Heating Options: Tubular electric heating elements are standard for regeneration. Water, steam, or gas heating coils are available as customized options.
• Easy Access for Streamlined Maintenance: The design provides easy access to internal components, simplifying maintenance procedures and reducing downtime.
• Efficient and Reliable Components: Equipped with EC-fans.
• Advanced Filtration: Pocket filters ranging from G4 to F9 are available on request.
• High-Efficiency Rotor Technology: Utilizes a high-efficiency, washable silica gel rotor for effective and consistent dehumidification.
• Quality European Components: All components are sourced exclusively from reputable European manufacturers, ensuring long-term reliability and optimal performance.

Technical data

Process air
Rated airflow – 4000 m³/h
Available static pressure 260 Pа

Reactivation air
Rated airflow 1000 m³/h
Available static pressure 280 Pа

Power supply
(3х400V, 50 Hz) 35 kW
Current 50 А

Miscellaneous data
Weight 540 kg
Operating temperature -30/+40˚С
Max noise level without ductworks 70 dBA
Air filter EU4…EU9
IEC protective class IP55
Insulation 20mm
